Slide & Combo Gates

Versatile slide gates for canals, ditches, flood control systems, and low head industrial water control. Available in pressure and non-pressure configurations with flat back models for headwall mounting and spigot back models for corrugated pipe. Our combination gates provide both overshot and undershot flow control, while specialized models include galvanized distribution gates, toggle gates, and medium-duty sluice gates for diverse applications.

Series 4200 Type W Pressure Gate

The Series 4200 Type W Pressure Gates hold pressure in both flow directions and are used in canals, flood control systems, pipeline distribution, …

View Details

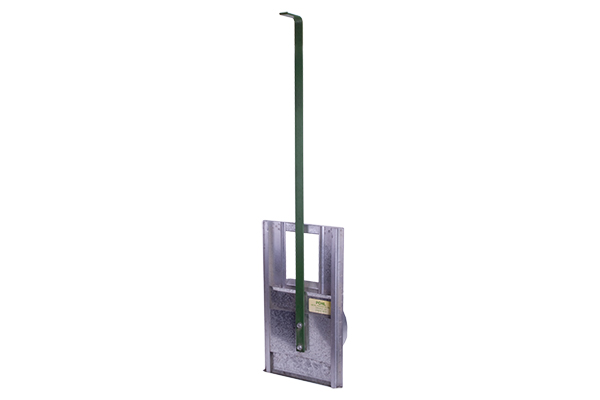

Series 5200 Galvanized Slide Gate

The Series 5200 Galvanized Slide Gate provides cost effective flow control in low pressure applications. May be used with concrete or plastic pipe.

View Details

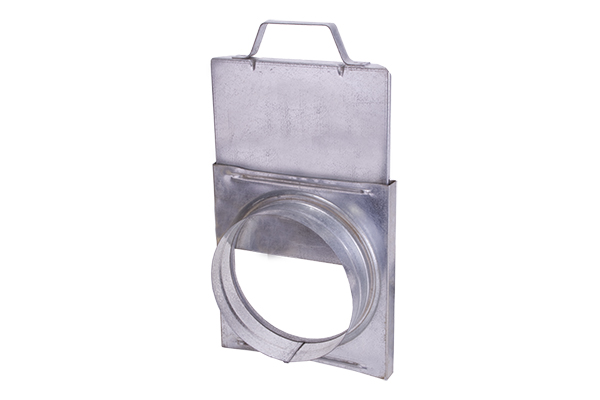

Series 5300 Galvanized Distributing Gates

The Series 5300 Galvanized Distributing Gates provide cost effective flow control in very low pressure situations.

View Details

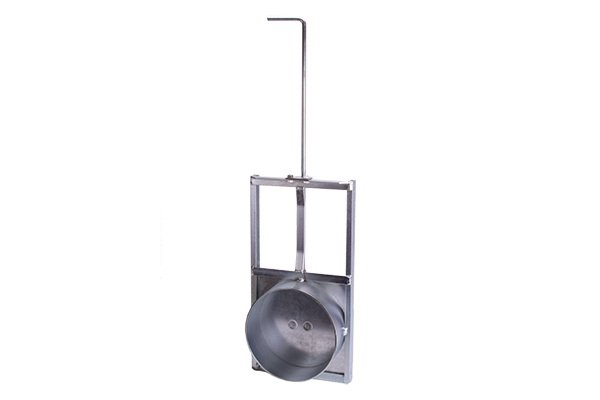

Series 5500 Galvanized Toggle Gate

The Series 5500 Galvanized Toggle Gates are used in similar applications to the Series 5200, but utilize a cam action slide which allows the gate to …

View Details

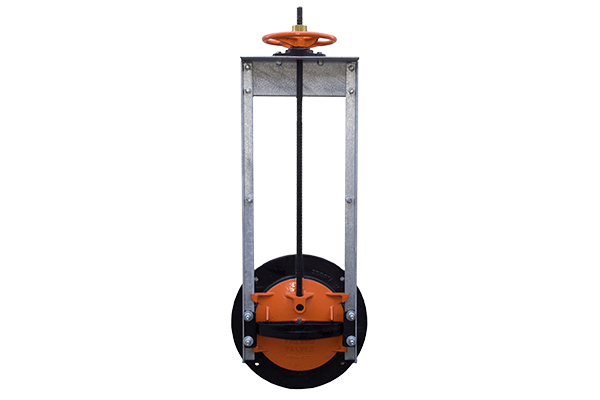

Series 6400 Model 20-10C Medium Duty Sluice Gate

The Series 6400 Sluice Gates are designed for use in controlling flow through round opening with heads up to 20ft. on the front side and up to 10 ft. …

View Details

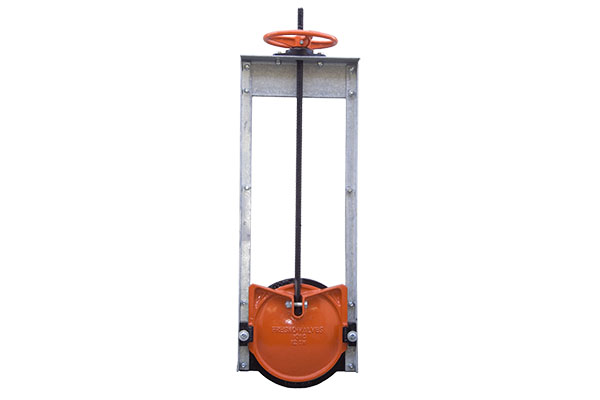

Series 6600 Model 101C Slide Gate

Series 6600 Slide Gates are used where pressure is in the seating direction only. Flat back models for headwall or flange mounting. Spigot back …

View Details

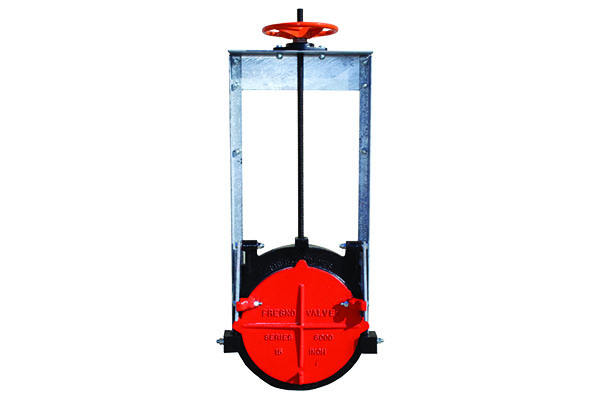

Series 6700 Model 1001C Combination Gate

The Series 6700 Combination Gates combine the many features of both slide gates and flap gates into one multi-functional water control device.

View Details
