Fabricated Gates

Custom-engineered fabricated gates designed and built to your exact specifications. Available in carbon steel, galvanized steel, stainless steel, and aluminum, our fabricated gates include slide gates, radial (Tainter) gates, canal gates, combination gates, flap gates, bulkhead gates, and hand pull gates. Ideal for large openings and specialized water control applications in canals, ditches, and flood control systems.
Bulkhead / Stop Log Gates

Bulkhead and Stop Log gates are ideal for temporarily damming the flow of water in order to drain specific areas so that maintenance can be performed …

View Details

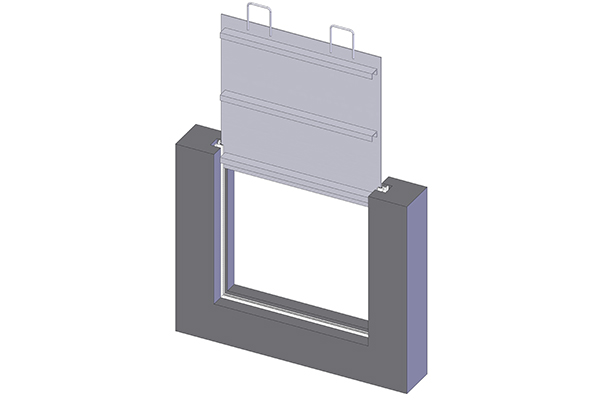

Hand Pull Gates

Fresno Valves & Castings manufactures several standard sizes of hand-pull or stop gates. An extruded metal section embeds in the side walls or is …

View Details

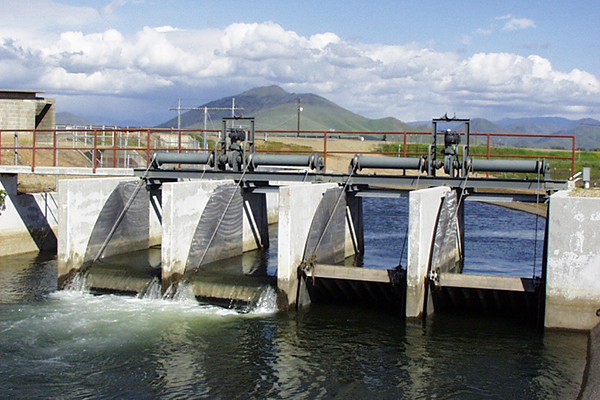

Overshot Gates

Overshot gates (also known as pivoting weir gates) are used to control upstream water levels. Versatility, efficiency, and safety are the primary …

View Details
Radial Gates

Radial gates (also known as Tainter gates) have a large convex surface which dams the upstream flow of water. The gate is supported by radial arms …

View Details

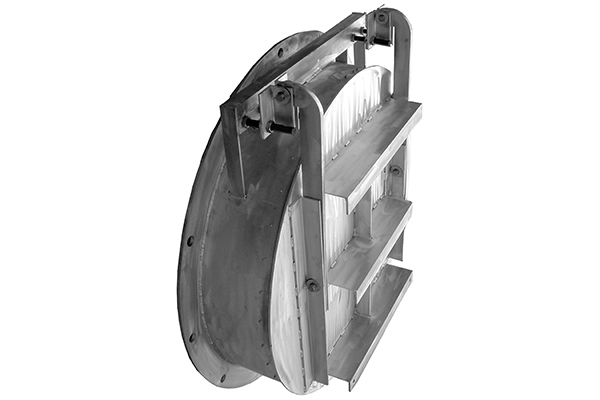

Series 5900 Fabricated Flap Gate

The Series 5900 Drainage (Flap) (Tide) Gates are a corrosion-resistant, rustproof, automatic drainage gate designed for use where light weight, …

View Details

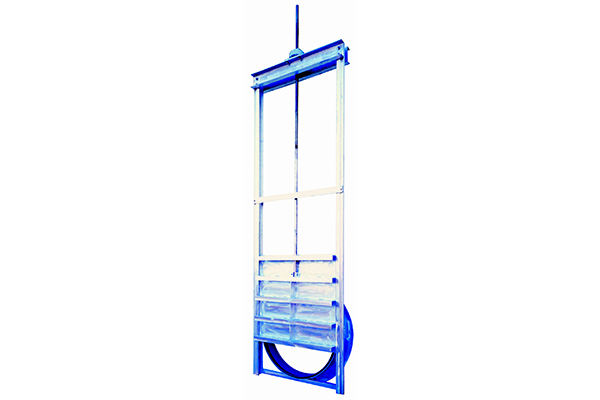

Series 7600 Fabricated Canal Gate

The Series 7600 Fabricated Canal Gate is designed for use in water control applications where corrosion resistance is a primary concern.

View Details

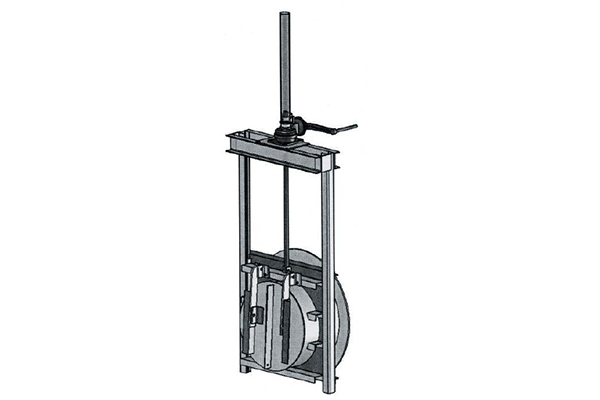

Series 7700 Fabricated Combination Gate

The Series 7700 Fabricated Combination Gate combines the functionality of the Series 7600 Slide Gate and the Series 5900 Flap Gate. Available in …

View Details

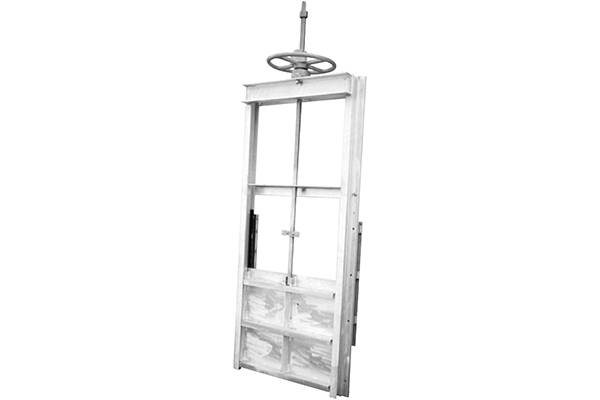

Series 8200 Fabricated Slide Gate

The Series 8200 Fabricated Slide Gate is an engineered to order slide gate that is fabricated to exact specifications. Available in carbon steel, …
